General Profile
SECTION : DAVAO CITY DIVERSION RD
LOCATION : DAVAO CITY
STATION LIMITS : K1504 + 588
PHYSICAL TARGET : 1 NO. OF BRIDGE
BRIDGE ID : B01457MN
ALLOCATION : 5,000,000.00
Design Analysis
Final Work
A. Retrofitting Process

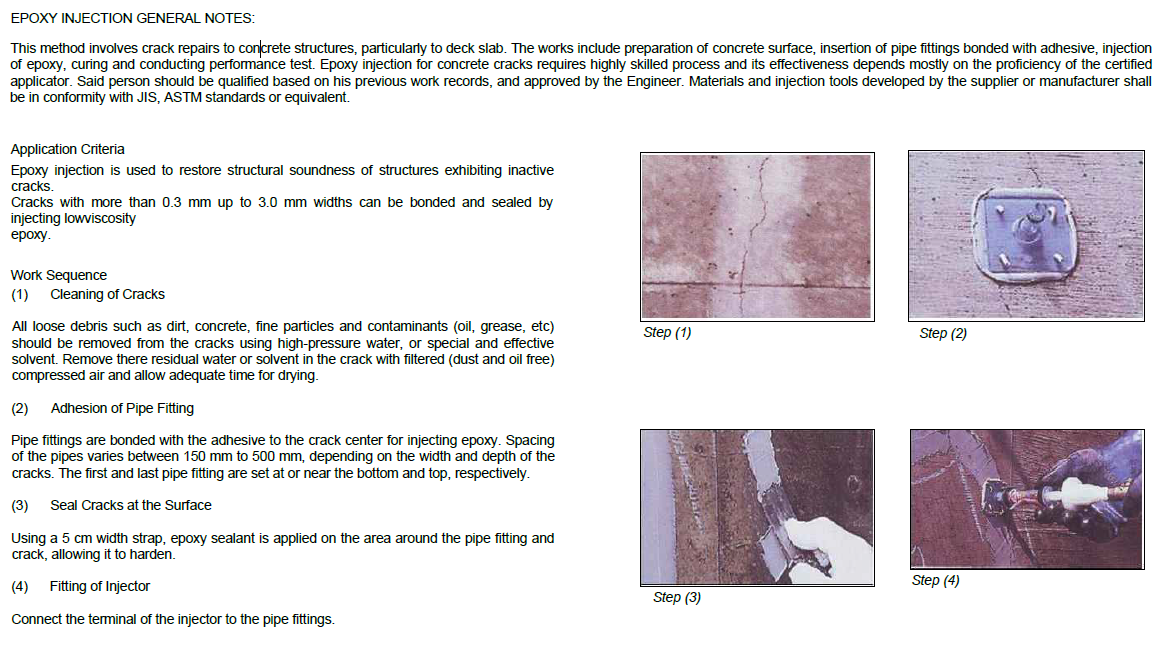

Surface Preparation: Grind cracks, clean with epoxy injection.

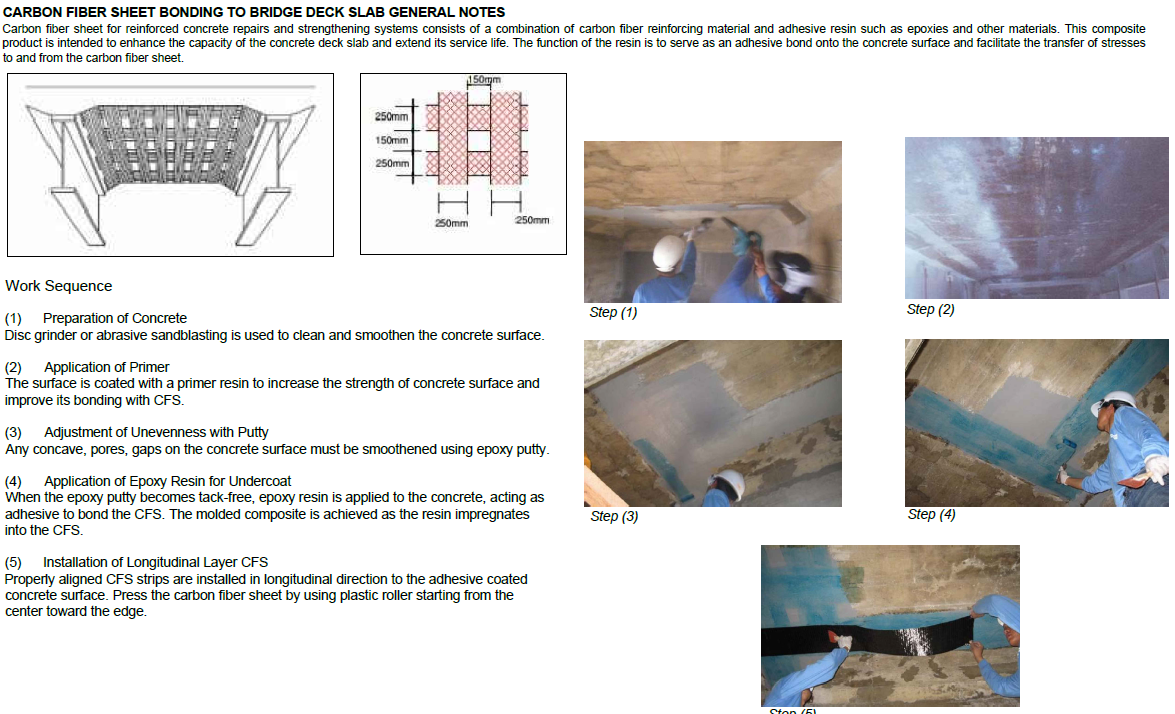

Fabric Installation:

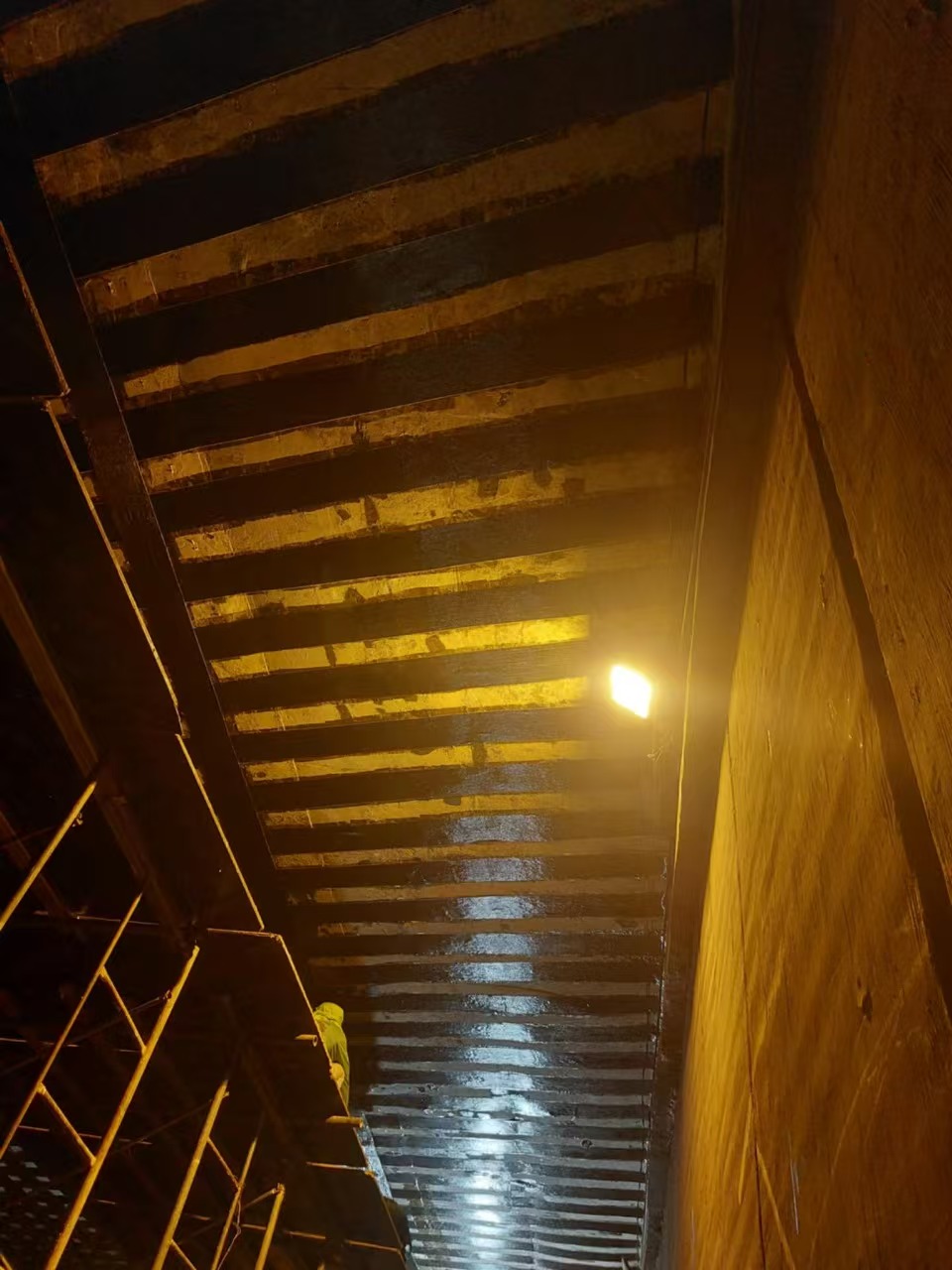

Lay WFC-300 sheets in unidirectional orientation.
Saturate with epoxy, remove air bubbles.
B. Quality Assurance
Adhesion tests (pull-off strength ≥2.5 MPa)
